EMS documentation fails in two common ways: too little structure to prove systematic environmental management, or too much complexity for daily users to follow and maintain. Guide 1.3 is built around calibrating the documentation set to environmental risk, workforce competence, and regulatory demand.
The guide explains the maintain-versus-retain distinction, the mandatory documented information ISO 14001 explicitly requires, the four-tier hierarchy for organizing documents, and the control methods needed to keep procedures, records, permits, and evidence current and audit-ready.

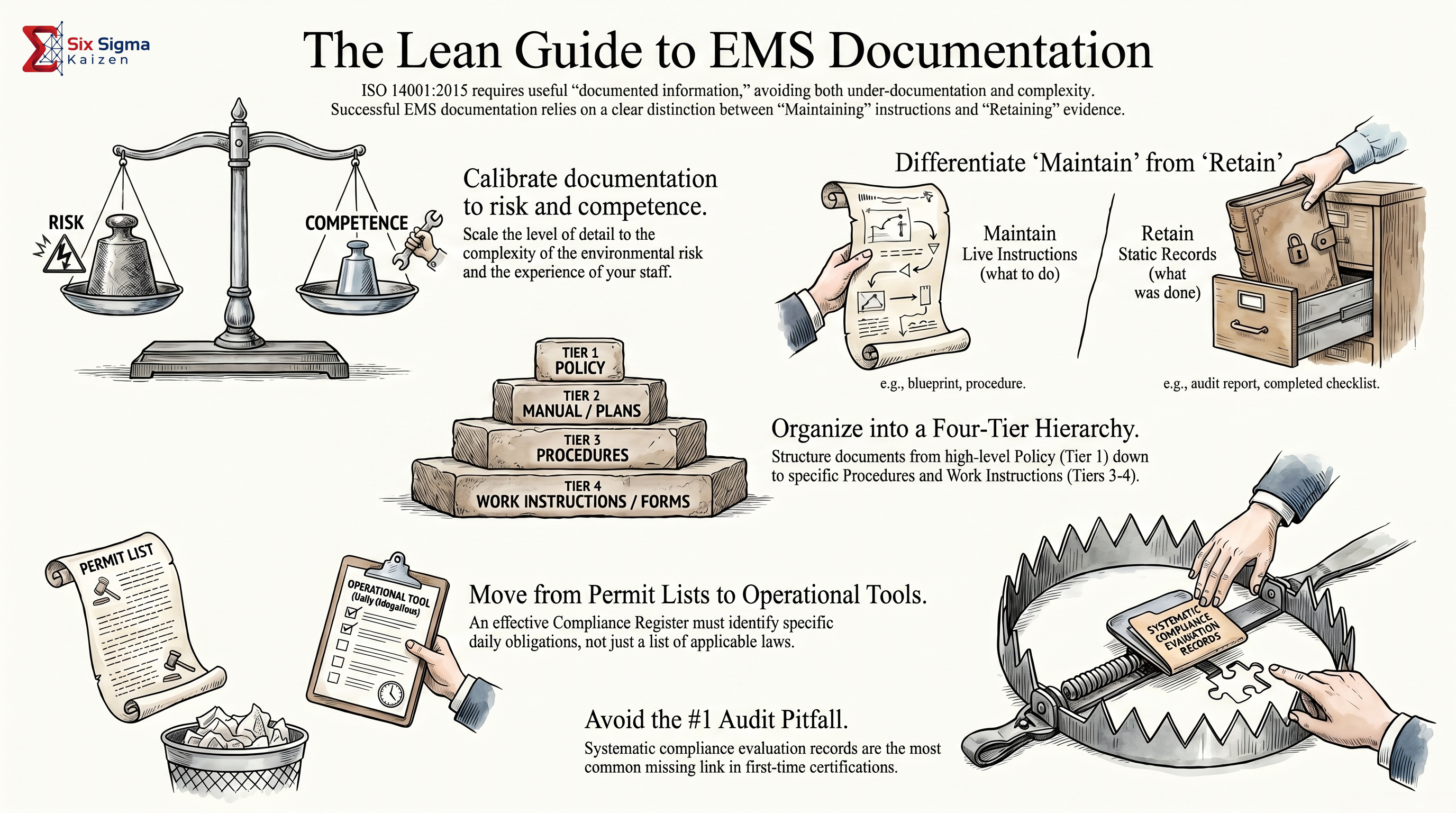

Visual Summary
Use the Guide 1.3 visual as the high-level model for documentation calibration, hierarchy design, maintain-versus-retain logic, and compliance-record discipline.
Jump to Guide Sections
1. EMS Documentation Philosophy
ISO 14001 uses deliberately flexible language around documented information. The standard expects the organization to maintain and retain what is necessary for an effective EMS plus the items explicitly required by the clauses. That means calibration matters.
What Documentation Must Be Calibrated To
- Environmental complexity and risk of the operation.
- Competence and experience level of the personnel using the documents.
- Permit, regulatory, and certification requirements that cannot be simplified away.
What Good Documentation Avoids
- Under-documentation that leaves operators without clear guidance.
- Over-documentation that no one reads, updates, or uses.
- Generic permit lists with no operational translation.
- Audit-focused paperwork that is detached from daily environmental control.
2. “Maintain” vs “Retain” Is an Operational Distinction
The guide treats this distinction as one of the most important ideas in ISO 14001 documentation. Maintained documents tell people what to do. Retained records prove what was done.
| Dimension | Maintain | Retain |
|---|---|---|
| Nature | Instructional documents that describe what to do and how to do it. | Evidence records that capture what was actually done. |
| Examples | Policy, scope statement, aspects register, legal register, objectives, procedures. | Monitoring logs, training records, audit records, management review minutes, compliance evaluation results, emergency drill records. |
| Control need | Must be current, approved, version-controlled, accessible, and reviewed when conditions change. | Must be legible, retrievable, protected from alteration, and held for a defined retention period. |
| Lifecycle | Revised as processes, risks, and regulations change. | Not revised; records remain historical snapshots. |
3. Mandatory Documented Information in ISO 14001
Some EMS documents are calibration decisions. Others are non-negotiable because ISO 14001 explicitly requires them. A first-time certification effort that lacks these items will take findings.
| Required Maintained Document | Clause | What It Must Cover |
|---|---|---|
| EMS Scope Statement | 4.3 | Boundary of the EMS, included activities and locations, applicability, and any justified exclusions. |
| Environmental Policy | 5.2 | Commitments to protect the environment, fulfill compliance obligations, continually improve the EMS, and frame objectives. |
| Aspects and Impacts Register | 6.1.2 | Normal, abnormal, and emergency-condition aspects, significance methodology, significant aspects, and life-cycle perspective. |
| Compliance Obligations Register | 6.1.3 | Applicable legal and other requirements plus how each one applies operationally. |
| Environmental Objectives and Plans | 6.2 | Objectives, targets, owners, resources, timing, and evaluation methods. |
| Required Retained Record | Clause | Evidence Required |
|---|---|---|
| Competence Evidence | 7.2 | Training, qualifications, experience, or other competence proof for EMS-affecting roles. |
| Monitoring and Measurement Results | 9.1.1 | What was measured, when, by whom, with what result, and against which requirement or metric. |
| Compliance Evaluation Results | 9.1.2 | Systematic evaluation of each identified obligation, evaluator, date, and conclusion. |
| Internal Audit Program and Results | 9.2.2 | Audit schedule, scope, criteria, findings, and corrective-action follow-through. |
| Management Review Records | 9.3 | Inputs addressed, discussions, decisions, actions, owners, and approval by top management. |
| Corrective Action Records | 10.2.2 | Nature of the nonconformance, correction, root cause, action, and effectiveness verification. |
4. Organize the EMS into a Four-Tier Hierarchy
The guide recommends a four-tier structure so users can move from high-level commitments to specific task instructions and evidence forms without getting lost.
| Tier | Document Type | Purpose and Audience |
|---|---|---|
| Tier 1 | Policy Level | Environmental policy and scope statement that define system intent and boundary for all stakeholders. |
| Tier 2 | System Level | Core analytical documents such as aspects, legal register, objectives tracker, and risk register used by EMS leadership and auditors. |
| Tier 3 | Procedure Level | Operational control procedures and EMS management procedures used by supervisors and technical process owners. |
| Tier 4 | Work Instruction / Record Level | Task-level instructions, checklists, forms, and logs used at the point of work by operators and technicians. |
Why the Hierarchy Matters
It makes the EMS navigable for both operators and auditors. A reader can move from policy, to system rule, to procedure, to task-level execution evidence without ambiguity.
Numbering Discipline
The guide recommends a structured numbering scheme using organization prefix, EMS system tag, document-type code, and sequential number so the library stays scalable and clear.
5. Writing Environmental Operational Control Procedures
Tier 3 procedures are where ISO 14001 becomes operational. These documents translate significant aspects, permit conditions, and EMS planning decisions into usable daily controls.
| Element | What It Must Do |
|---|---|
| Purpose | State what aspect or obligation the procedure controls and why the document exists. |
| Scope | Define what operations, people, locations, and boundaries are covered. |
| Regulatory References | Connect the procedure directly to permit conditions, legal citations, or internal standards. |
| Roles and Responsibilities | Assign the specific actions to roles, not just broad process ownership. |
| Procedure Steps | Define actionable operating instructions with clear limits and expected actions. |
| Monitoring Requirements | State what is measured, how often, using what equipment, and what acceptable range applies. |
| Response to Abnormal Conditions | Explain what to do for exceedances, malfunctions, spills, or other abnormal situations. |
| Records | Specify what evidence must be created, where it is kept, and how long it is retained. |
6. EMS Document Control System and External Documents
Clause 7.5.3 requires EMS documented information to be available where needed and protected from uncontrolled change. The guide reduces that into five core control elements and extends the same logic to external documents like permits and SDS files.
Five Core Control Elements
- Distribution and access at point of use.
- Protection from unintended alteration, deletion, or loss.
- Controlled change review, approval, and communication.
- Reasonable retrievability for staff, auditors, and regulators.
- Retention and disposition aligned to documented schedules.
External Documents That Must Be Controlled
- Environmental permits and licenses.
- Referenced regulatory text.
- Current SDS documents for significant environmental materials.
- Adopted guidance documents or standards.
- Customer environmental requirements that function as obligations.
The guide’s worked example uses a SharePoint-based EMS library with version control, check-out for editing, automatic revision history, review-date alerts, hierarchy-based folders, and mobile access for operators at workstations.
7. Environmental Record Retention Schedule
Retention periods should be set by the most stringent applicable driver: ISO evidence needs, permit and regulatory minimums, and legal-liability exposure. The guide’s example schedule is built around that rule.
| Record Type | Typical Minimum | Guide Retention Model |
|---|---|---|
| Permit monitoring records | Often 3 years by permit condition | 5 years to cover enforcement exposure and late-discovered issues. |
| Hazardous waste manifests | 3 years from signing | 7 years where disposal and enforcement risk justify longer retention. |
| Spill and emergency response records | Varies | 10 years or permanent retention for significant spill events. |
| Employee EMS training records | No standard-specific regulatory minimum | Employment duration plus 5 years. |
| Compliance evaluation records | No fixed standard minimum | 5 years to demonstrate due diligence and support enforcement defense. |
| Internal audit and management review records | No fixed standard minimum | At least 3 audit cycles or 3 years minimum for surveillance and recertification reference. |
8. Documentation Build Sequence and Common Audit Findings
Guide 1.3 recommends building EMS documents in dependency order, not by convenience. Scope, policy, roles, aspects, legal register, objectives, procedures, emergency planning, EMS management procedures, and then work instructions and forms is the preferred sequence.
Recommended Build Order
- Scope statement
- Environmental policy
- Roles and responsibilities matrix
- Aspects and impacts register
- Compliance obligations register
- Objectives and plans
- Operational control procedures
- Emergency response plan update
- EMS management procedures
- Work instructions and record templates
Common Documentation Audit Findings
- Emergency-condition aspects missing from the aspects register.
- Compliance obligations register lists laws but not specific operational requirements.
- Operational procedures do not address abnormal conditions or exceedances.
- No documented compliance evaluation record exists.
- External permits are referenced but not controlled as current EMS documents.
- No formal retention schedule defines how long environmental records are kept.
