This guide covers the documentation development phase of ISO 9001 implementation. By this point, the scope statement, Quality Policy, document control system, and process-owner assignments should be substantially in place. The work now shifts to building documented information that governs how quality-affecting work is performed, controlled, and evidenced.
Effective documentation describes real work, not aspirational work. The goal is calibrated documentation: enough control to make processes repeatable and auditable without creating a paperwork system that users ignore.

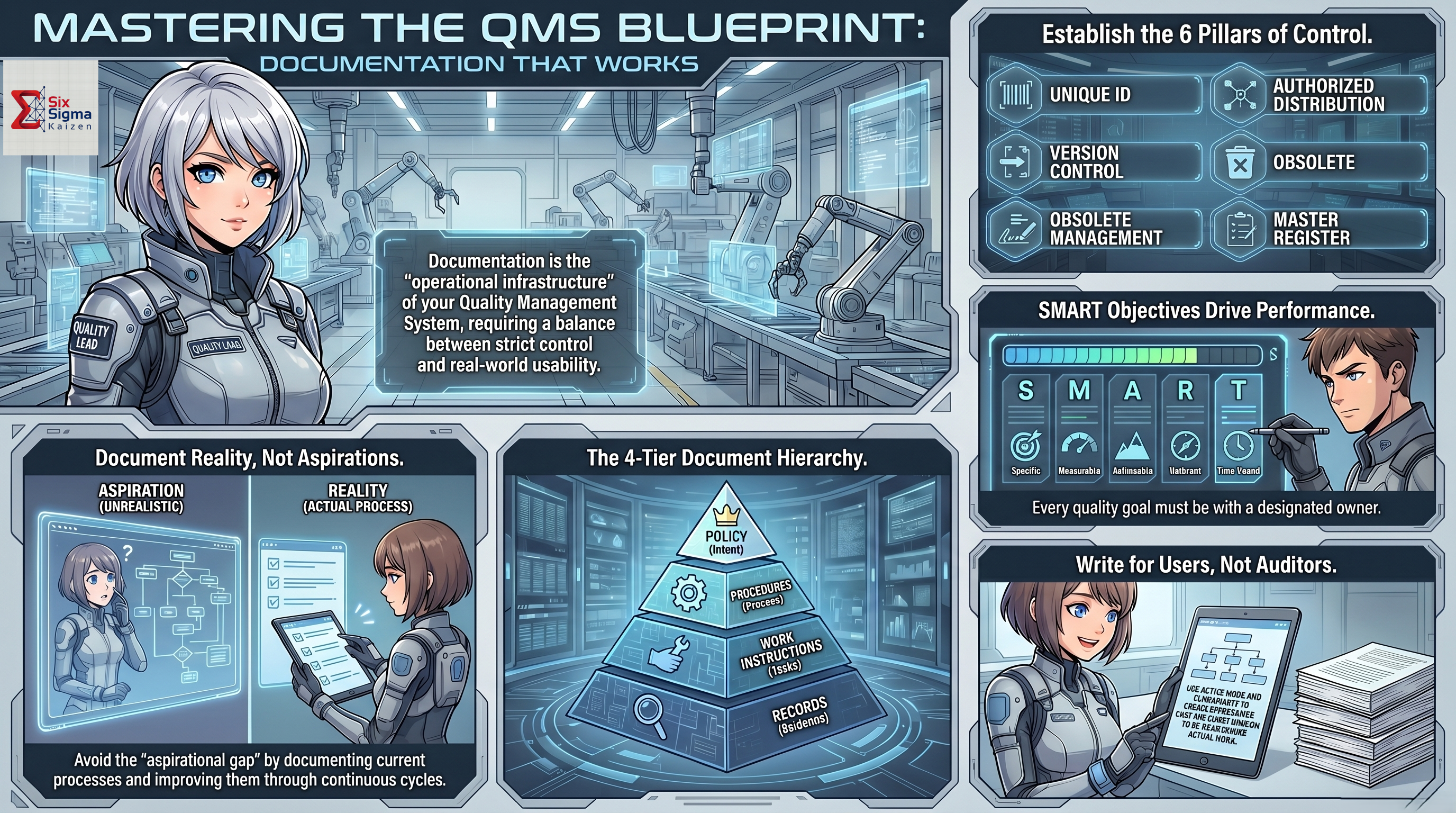

Visual Summary
Use the documentation-development visual as a quick reference for QMS document hierarchy, control, objectives, and user-focused writing.
Jump to Guide Sections
1. The Right Documentation Philosophy
The most important documentation decision is whether the QMS describes how work actually happens or how someone wishes work happened. Aspirational procedures fail twice: employees do not follow them because they do not match reality, and auditors find the gap between documented process and observed practice.
| Maintain Documented Information | Retain Documented Information |
|---|---|
| Instructional documents that describe how processes are intended to work. | Evidence records proving work happened as planned and controls were followed. |
| Procedures, work instructions, forms, process maps, policies, manuals, and controlled templates. | Training records, inspection results, calibration certificates, NCRs, CAPA records, and management review minutes. |
| Controlled, approved, revision-managed, distributed to users, and updated when processes change. | Protected, retrievable, legible, retained for defined periods, and not revised after the fact. |
2. The QMS Document Hierarchy
A clear hierarchy prevents policy-level documents from becoming overloaded with task detail and prevents operational controls from being hidden in vague high-level language.
Tier 1: Policy Level
Quality Policy, scope statement, and optional quality manual define intent, boundaries, commitments, and the QMS frame.
Tier 2: Process Procedures
Procedures define the process: what is done, by whom, under what conditions, in what sequence, and with what records.
Tier 3: Work Instructions
Work instructions provide task-level steps where detail, risk, training need, or variation requires tighter control.
Tier 4: Records
Records are evidence that work was performed, reviewed, accepted, rejected, corrected, trained, audited, or improved.
3. Document Control: The System That Makes Documentation Work
Document control is the operating infrastructure of the QMS. A document control system has to make current documents available where needed, prevent unintended use of obsolete versions, preserve records, and keep the document register accurate.
| Control Element | Minimum Requirement | Failure to Prevent |
|---|---|---|
| Unique identification | Document number, title, revision, effective date, owner, and approval status. | Unclear version status, duplicate documents, or uncontrolled local copies. |
| Review and approval | Appropriate process owners approve documents before release and after revision. | Quality-owned documents that do not match real work or current process ownership. |
| Authorized distribution | Users access the current version at the point of use. | Employees following outdated instructions or saving uncontrolled copies. |
| Obsolete management | Retired versions are removed from use or clearly identified as obsolete. | Old forms, specs, procedures, or work instructions continuing to drive daily decisions. |
| Master register | One inventory lists controlled documents, owners, status, locations, and retention rules. | No reliable way to prove what documents exist, who owns them, or which version is active. |
In the Meridian case, Denise selects a controlled SharePoint structure rather than a complex enterprise document-management system, because usability and discipline matter more than software sophistication.
4. Writing a Quality Policy That Means Something
The Quality Policy should communicate the organization's quality intent in language that fits the business. It should not be a generic poster written only to satisfy an auditor.
Policy Requirements
- Appropriate to purpose and context.
- Supports strategic direction.
- Provides a framework for objectives.
- Includes commitments to satisfy requirements and continually improve.
Communication Requirement
The policy must be available, maintained, communicated, understood, applied, and available to relevant interested parties as appropriate.
5. Quality Objectives: From Platitude to Performance
Quality objectives translate policy commitments into measurable performance. Useful objectives are specific, measurable, achievable, relevant, time-bound, assigned to owners, supported with action plans, and reviewed through management review.
| SMART Element | QMS Interpretation | Objective Check |
|---|---|---|
| Specific | Names the quality outcome, process result, customer requirement, or risk area. | Can a process owner explain exactly what will improve? |
| Measurable | Uses a defined metric, calculation method, data source, and reporting cadence. | Can the result be verified without interpretation or debate? |
| Achievable | Can be reached with known resources, authority, actions, and process capability. | Does the owner have the means to influence the result? |
| Relevant | Connects to customer needs, process performance, risk reduction, compliance, or strategy. | Would leadership still care about the objective after certification? |
| Time-bound | Has a target date, review cadence, action owner, and escalation logic. | Is there a defined date when progress will be judged? |
6. Writing Procedures That Actually Get Used
Procedure writing is a craft. Good procedures are written for competent, trained users; define roles and decision points; identify records; and describe the real process at the right level of detail.
Standard Procedure Architecture
- Purpose and scope.
- Responsibilities.
- Definitions or references.
- Process steps and decision points.
- Required records.
- Revision history.
Common Failure Modes
- Regulatory language written for auditors instead of users.
- Overly detailed instructions that competent users will not read.
- Vague procedures that do not standardize decisions.
- Quality-authored documents without process-owner ownership.
7. Process Mapping for the QMS
Process mapping helps define process interaction, inputs, outputs, owners, measures, resources, controls, and risks. A high-level QMS process map shows how major processes interact; process-level maps clarify execution.
High-Level QMS Map
Shows the process landscape, customer flow, support processes, leadership processes, and improvement loop.
Turtle Diagram
Clarifies inputs, outputs, resources, methods, measures, competence, responsibilities, and process controls.
SIPOC
Defines suppliers, inputs, process steps, outputs, and customers for process boundaries and ownership.
Procedure Alignment
Process maps should match procedures and records, not sit apart as decorative audit artifacts.
8. Control Plans: Where ISO 9001 Meets Process Control
Control plans translate process knowledge into control expectations. They define what is controlled, the standard or specification, the method of verification, frequency, records, reaction plan, and responsibility.
| Control Plan Element | What to Document | Why It Matters |
|---|---|---|
| Characteristic | The product, process, service, or quality attribute being controlled. | Clarifies what must be protected to meet requirements. |
| Specification | The numeric limit, tolerance, acceptance criterion, or descriptive standard that must be met. | Turns expectations into auditable pass/fail criteria. |
| Method | The inspection, test, measurement, verification method, tool, or record used. | Prevents inconsistent judgment and unsupported release decisions. |
| Frequency | How often the check occurs and what events trigger extra verification. | Connects control effort to process risk and change points. |
| Reaction plan | What happens when the check fails, trends poorly, or signals loss of control. | Ensures nonconformity handling starts immediately instead of relying on informal judgment. |
9. Mandatory Documented Information
ISO 9001:2015 reduces prescriptive procedure requirements but still requires specific documented information. The organization must also determine additional documentation needed for QMS effectiveness.
Examples to Maintain
- QMS scope.
- Quality Policy.
- Quality objectives.
- Documented information needed to support process operation.
Examples to Retain
- Monitoring and measurement evidence.
- Competence evidence.
- Design and development records where applicable.
- Inspection, release, nonconformity, corrective action, internal audit, and management review records.
10. Meridian Documentation Journey
Meridian begins with a scattered Day 1 document inventory across personal drives, shared folders, shop-floor binders, and uncontrolled forms. Denise's documentation journey moves the organization toward a controlled architecture with process-owned procedures, a live document register, practical work instructions, meaningful records, and a training rollout.
| Stage | Documentation Focus | Expected Result |
|---|---|---|
| Inventory | Find existing documents, forms, registers, uncontrolled templates, and informal instructions. | Known baseline, ownership map, and document-control risk list. |
| Architecture | Define numbering, hierarchy, ownership, approval rules, repository structure, and retention expectations. | Controlled QMS infrastructure that users can navigate. |
| Development | Write process-owned procedures and supporting work instructions with user validation. | Documents that match real work, ISO expectations, and evidence needs. |
| Deployment | Train users, release documents, obsolete old versions, and collect records from actual process use. | Evidence that the QMS is operating rather than existing only as documentation. |
