This guide covers the internal audit phase of ISO 9001 implementation. At this stage the QMS is no longer just documented. It is operating, people have been trained, records are being generated, and the organization needs a disciplined way to test whether the system is actually conforming and effective before the registrar arrives.
Internal audits should not be treated as compliance theater. A strong audit program checks whether processes conform to ISO 9001, to the organization's own requirements, and to the real operating conditions on the floor. It also creates a reliable stream of evidence for corrective action and management review.

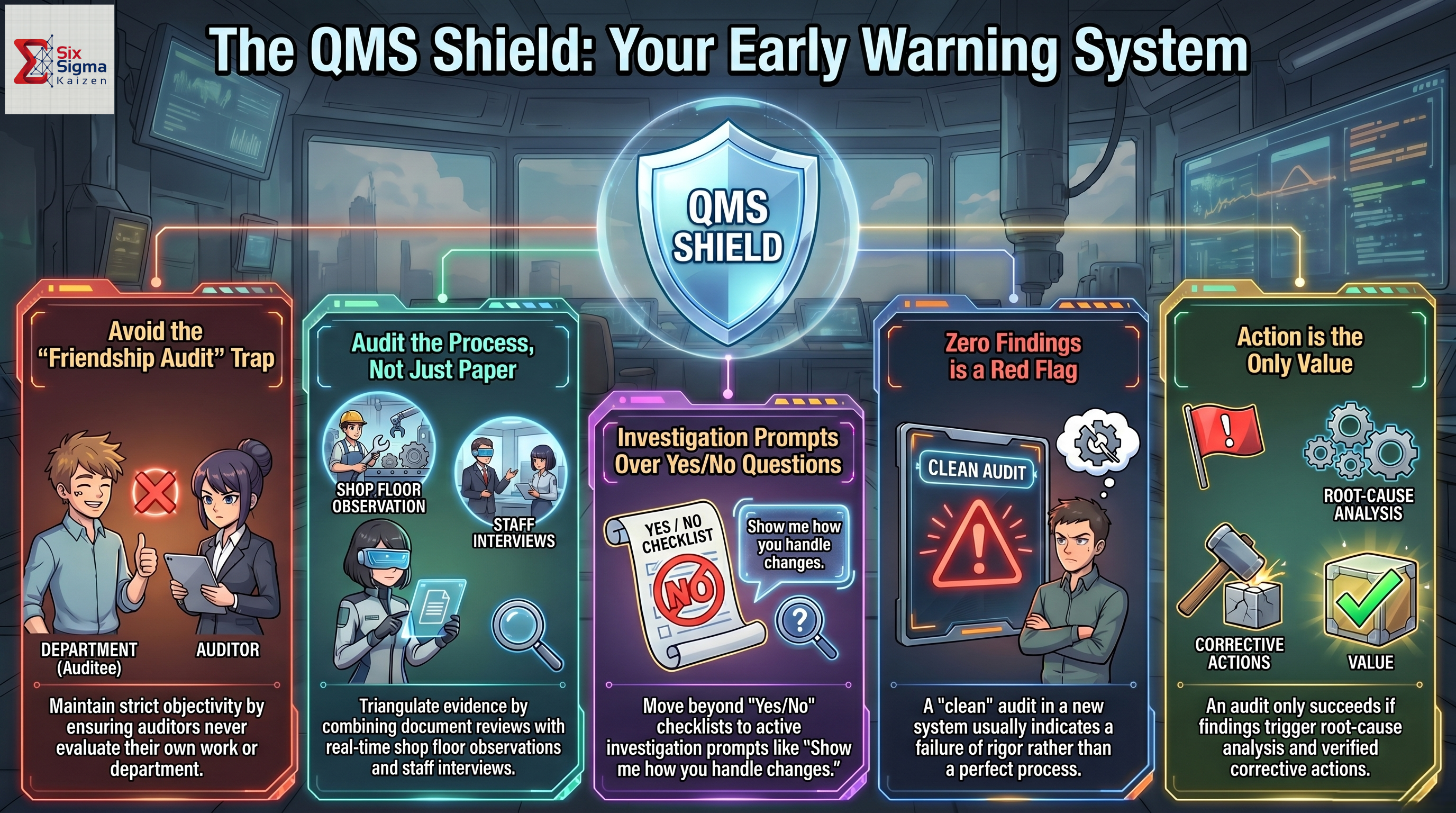

Visual Summary
Use the visual summary as a quick reference for the audit traps to avoid, evidence collection methods, stronger prompts, and the corrective-action mindset expected from a useful audit program.
Jump to Guide Sections
1. Why Internal Audits Fail
Most weak internal audit programs fail in predictable ways. They are designed around convenience, relationships, or paperwork review instead of around evidence and process behavior. That produces clean reports, but not trustworthy system knowledge.
| Failure Mode | What It Looks Like | Stronger Replacement |
|---|---|---|
| Friendship audit | Auditors review their own area or are too close to the process owner to challenge weak controls objectively. | Separate assignments from reporting lines and require impartiality checks before each audit event. |
| Paper audit | Audit stops at procedures and forms without going to the floor to observe how the work is actually performed. | Triangulate evidence through documents, observation, and interviews. |
| Checklist audit | Auditor asks yes/no questions that can be answered without proving process understanding or conformance. | Use prompts such as "show me," "walk me through," and "what happens when." |
| Zero-finding audit | A new system produces no findings, usually because the audit was superficial or too narrow. | Treat a clean audit in a first-year system as a signal to review audit rigor. |
| No-action audit | Findings are written but do not produce rooted corrective actions and verified effectiveness. | Track every finding through CAR opening, root cause, implementation, verification, and closure. |
2. Clause 9.2: What ISO 9001 Actually Requires
Clause 9.2 requires planned internal audits at planned intervals to determine whether the QMS conforms to both the organization's own requirements and ISO 9001, and whether the QMS is effectively implemented and maintained. It also requires objective audit programming, results reporting, corrective action follow-through, and retained evidence.
| Clause 9.2 Element | Implementation Meaning | Evidence to Retain |
|---|---|---|
| Planned intervals | Build an annual or cycle-based audit program that covers relevant processes and clauses using risk to set frequency. | Approved audit program and schedule. |
| Conforms to requirements | Audit against ISO 9001 plus the organization's procedures, records, forms, and process controls. | Audit plans, criteria, and working papers. |
| Implemented and maintained | Confirm the process is actually being used in operation, not merely documented. | Observation notes, interview records, sampled documents, and findings. |
| Objectivity and impartiality | Assign auditors so they are not auditing their own work and can challenge evidence credibly. | Auditor assignment log and competence records. |
| Report results | Issue formal audit reports to process owners, management, and the management representative. | Issued audit reports and closing meeting records. |
| Correct without undue delay | Findings must trigger corrective action with defined timelines, ownership, and follow-up. | CAR forms, logs, action plans, and effectiveness verification. |
What Clause 9.2 Does Not Require
- Every clause audited in one event.
- A single annual audit of everything.
- Certified lead auditors for every assignment.
- Paper checklists as the only audit method.
What It Does Require
- A deliberate program, not ad hoc reviews.
- Objective evidence, not impressions.
- Findings that can drive action.
- Visible integration with management review.
3. Building the Annual Audit Program
The audit program is the management system for all internal audits in the cycle. It determines what will be audited, how often, by whom, and by what sequence. In a first certification cycle, frequency should be driven by process risk, maturity, and the amount of change taking place.
| Process Area | Recommended First-Year Frequency | Reason |
|---|---|---|
| Core production or service delivery | Twice in year one | Highest risk and heaviest dependence on real process control. |
| Nonconforming output control | Twice in year one | Failure here can directly release defective product or service. |
| Corrective action process | Twice in year one | Weak CAPA follow-through makes every other finding less useful. |
| Design and development | At least once, often early | High documentation and change-control risk in new systems. |
| Supplier management | At least once | External provider performance often has weak first-year evidence trails. |
| Document control and training | At least once | Foundational controls should be verified before the registrar samples them. |
| Management review and internal audit program | At least once late in cycle | Needed to prove the performance-evaluation loop is functioning. |
| Audit Event Structure | Use Case | Limitation |
|---|---|---|
| Department-based | Easy scheduling and ownership alignment. | Can miss cross-functional process breaks. |
| Process-based | Best for testing how work flows across functions and records. | Takes more planning and coordination. |
| Clause-based | Useful for foundational system elements such as document control, leadership, or management review. | Can become abstract if not tied back to actual process evidence. |
4. Selecting and Training Internal Auditors
Internal auditors need more than clause familiarity. They need enough process knowledge to understand risk, enough objectivity to challenge weak evidence, and enough communication skill to write findings that management can act on.
| Selection Criterion | Why It Matters |
|---|---|
| Analytical thinking | Auditor must connect evidence, process flow, records, and risk rather than simply reading a checklist. |
| Communication skill | Interviews, opening meetings, closing meetings, and findings all depend on precise language. |
| Organizational credibility | Auditor needs enough standing to ask difficult questions and be taken seriously by process owners. |
| Objectivity and courage | Findings must be written even when the issue involves a well-liked manager or a sensitive area. |
| Process knowledge | Without it, the auditor cannot distinguish paperwork conformance from true process control. |
| Time availability | An auditor assigned without protected time will produce rushed audits and delayed reports. |
Training Options
- 2-day internal auditor course.
- 5-day lead auditor course for future program leaders.
- Consultant-led team workshop.
- Self-study plus a mentored first audit.
Practical Rule
Run each auditor's first real audit within 4 to 6 weeks of training completion. If the skill is not used quickly, the method quality drops fast.
5. Planning the Individual Audit
Each audit event needs an audit plan. The plan is where scope, criteria, objectives, schedule, resources, and reporting expectations are defined. Good planning also prevents the audit from drifting into general discussion without evidence.
| Audit Plan Element | What It Should Define |
|---|---|
| Scope | What process, function, site, line, or clause is covered and what is outside the audit boundary. |
| Criteria | ISO clauses, procedures, forms, records, customer requirements, and internal controls used to judge conformance. |
| Objectives | What the audit is trying to determine about conformity, effectiveness, and risk. |
| Audit team | Lead auditor, supporting auditors, and any technical subject-matter support. |
| Schedule | Opening meeting, floor time, interviews, record review, breaks, and closing meeting. |
| Methods | Sampling approach, walkthroughs, interview targets, and records to be reviewed. |
| Reporting plan | Who receives the report, when the report is due, and when corrective action responses are expected. |
| Weak Checklist Prompt | Stronger Investigation Prompt |
|---|---|
| Are training records complete? | Show me how you determine competence for this role, how the gap is documented, and what evidence proves the employee can now work independently. |
| Is document control followed? | Walk me through how a revised procedure gets approved, distributed, removed from old-use locations, and confirmed at the point of use. |
| Are customer requirements reviewed? | Show me the latest order review and explain what was checked, what risks were considered, and how the decision was documented. |
| Is nonconforming material controlled? | Take me to the quarantine area and explain how material is identified, segregated, dispositioned, and prevented from accidental use. |
6. Conducting the Audit
Audit execution should move from orientation to evidence to conclusion. The opening meeting sets expectations. The fieldwork collects evidence from multiple sources. The closing meeting confirms what was found and what happens next.
Opening Meeting Focus
- Confirm scope, criteria, and schedule.
- Clarify audit objectives and roles.
- Confirm access to records, people, and work areas.
- Set expectations for evidence and for the closing meeting.
Three Required Evidence Streams
- Document and record review.
- Process observation at the point of use.
- Interviews across operator, supervisor, and owner levels.
| Classification | Meaning | Typical Response |
|---|---|---|
| Major nonconformance | Systemic breakdown or a failure that creates serious doubt about QMS control or the ability to meet requirements. | Immediate attention, tighter containment, faster corrective action response, and management escalation. |
| Minor nonconformance | Specific requirement not met, but the overall system remains substantially functioning. | Documented corrective action with target dates and later effectiveness verification. |
| Observation / OFI | Risk, weakness, or improvement signal that is not yet a nonconformance. | Track for trend review and consider local action before it becomes a repeat issue. |
7. Writing Findings That Drive Real Improvement
A useful finding includes the requirement, the objective evidence, the conclusion, and the classification. Weak findings use vague language such as "not working well" or "records incomplete." Strong findings explain exactly what was required, what was sampled, what was missing, and where the system failed.
| Weak Finding | Strong Finding |
|---|---|
| Training records are incomplete. | ISO 9001:2015 Clause 7.2(d) requires retained documented information as evidence of competence. Review of machining operator training files found no competence verification record, supervisor sign-off, or equivalent evidence for J. Torres and R. Singh, despite attendance records showing training completion in June and July. Classification: Minor nonconformance. |
| Calibration is not being done properly. | During floor walkthrough, micrometer MPC-CAL-0047 was observed in active use on Line 2 with a calibration label showing a due date 4 months earlier. No calibration record after the expiration date was found in the calibration log. Classification: Minor nonconformance against Clause 7.1.5.1. |
| Corrective action process is not working well. | Review of 8 closed corrective action requests found 6 with the effectiveness verification section blank and the remaining 2 containing only "action implemented" without verification evidence. Classification: Minor nonconformance against Clause 10.2.1(e), with escalation risk if the pattern recurs. |
8. The Audit Report
The audit report is required documented information under Clause 9.2.2(f). It records the audit event, communicates results to management, provides the basis for corrective action, and becomes part of the evidence stream for management review and registrar sampling.
| Report Section | Content |
|---|---|
| Header and identification | Audit reference, date, event name, scope, criteria, auditors, auditees, and execution dates. |
| Audit summary | Short narrative on what was covered, overall impression of effectiveness, and finding count by class. |
| Positive observations | Specific examples of strong practice so management receives a balanced picture of QMS health. |
| Nonconformance findings | Each finding with identifier, classification, requirement, objective evidence, and finding statement. |
| Observations / OFIs | Potential risks or improvement opportunities that do not yet require corrective action. |
| Conclusion and response section | Overall conclusion plus response due dates or linked CAR forms for process-owner action. |
9. From Audit Finding to Verified Corrective Action
Internal audit findings matter only if they trigger a disciplined corrective action cycle. Audit-generated CARs need ownership, aging visibility, and a real effectiveness check after implementation. "Action implemented" is not the same thing as "root cause addressed."
| Step | Action Required | Typical Timing and Owner |
|---|---|---|
| 1. Open the CAR | Create a corrective action request linked to the finding number and assign it to the process owner. | Within 5 business days of report issuance. Assigned by management representative. |
| 2. Containment | Where active quality risk exists, document immediate containment before root cause work begins. | Immediately if applicable. Owned by process owner. |
| 3. Root cause analysis | Use 5 Why, Ishikawa, or equivalent to determine why the system allowed the nonconformance. | Roughly 10 to 15 days depending on classification. |
| 4. Corrective action plan | Define actions that address the cause, not just the local symptom, with dates and named owners. | Usually due within 15 to 20 days of CAR opening. |
| 5. Implementation | Execute the actions and document completion evidence. | Per the plan's target dates. |
| 6. Effectiveness verification | Return to the process and verify that recurrence risk is reduced and the requirement is now met. | Often 30 to 60 days after implementation. Verified by auditor or management representative. |
| 7. CAR closure | Close only after effective correction is evidenced and closure rationale is documented. | Managed by management representative. |
What to Track
- Total open audit CARs.
- Aging of each CAR.
- Overdue CARs.
- Awaiting verification status.
- Percent closed on time.
Registrar Attention Points
- Aging CARs with no documented progress.
- Root causes written as "employee error."
- Retraining as the default action for every problem.
- Closure without evidence of effectiveness.
10. Feeding the Management Review
Audit results are an explicit management review input under Clause 9.3. The audit program should therefore be designed to produce trend information, not just isolated event reports. Leadership needs to see where findings are concentrated, which CARs are overdue, and whether repeat findings indicate weak root-cause correction.
| Management Review Audit Input | Why It Matters |
|---|---|
| Audit program completion status | Shows whether planned audits were completed on schedule and whether any risk areas were deferred. |
| Finding summary by class | Provides a simple view of system health and trend direction across cycles. |
| Distribution by clause and process | Helps leadership see where systemic weaknesses are concentrated. |
| Corrective action status | Highlights backlog, overdue items, and responsiveness by process owner. |
| Repeat findings | Signals ineffective corrective action and usually deserves escalation. |
| Audit program effectiveness | Helps leadership judge whether the audit system itself is producing useful information. |
11. Common First-Year Findings
First-year systems tend to repeat the same finding patterns. Reviewing them in advance helps both auditors and process owners focus effort where evidence typically breaks down.
| Clause Area | Frequent Finding Pattern |
|---|---|
| Clause 7.2 - Competence | Attendance records exist but competence verification evidence is absent. |
| Clause 10.2 - Corrective Action | Root cause written as employee error or failure to follow procedure without systemic analysis. |
| Clause 7.1.5 - Calibration | Devices in use are missing from the equipment list or are overdue for calibration. |
| Clause 9.3 - Management Review | Minutes do not address all required inputs, often missing audit results or supplier performance. |
| Clause 8.3 - Design and Development | Review records do not show attendees, outcomes, identified issues, or disposition decisions. |
| Clause 8.4 - External Providers | Approved supplier list exists but ongoing performance monitoring is weak or disconnected from re-evaluation. |
| Clause 7.5 - Document Control | Obsolete procedure versions remain accessible alongside current versions. |
| Clause 8.5.2 - Identification and Traceability | Traceability breaks during an intermediate step or transport between operations. |
| Clause 7.3 - Awareness | Employees cannot explain relevant objectives or how their work supports QMS effectiveness. |
| Clause 6.1 - Risks and Opportunities | Risk register was created at implementation but has not been updated to reflect real operating changes. |
12. Quick Reference: Internal Audit Program Essentials
Audit Program Readiness Checklist
- Internal audit procedure approved and issued.
- At least two auditors trained in ISO 9001 and audit method.
- Auditor competence records on file.
- Annual audit program approved with risk-based coverage.
- Objectivity confirmed for each assignment.
- Audit plans prepared for each scheduled event.
- Checklists built as prompts, not yes/no forms.
- All audits scheduled to finish before Stage 2 buffer closes.
- Audit report template and CAR log ready.
- Management review scheduled after at least one full audit cycle.
Finding Quality Self-Check
- Does the finding state the exact requirement?
- Is the evidence factual, specific, and sampled?
- Could a reader understand the issue without being present?
- Is the finding free of attitude language and guesswork?
- Is the classification justified?
- Can the corrective-action team start root cause work without another fact-finding pass?
