Warehouses are often treated as storage buildings, but high-performing distribution operations are value engines. They protect inventory accuracy, compress customer lead time, prevent damage, convert labor into reliable fulfillment, and make supply chain promises executable. A warehouse with poor layout, weak slotting, informal receiving, and inaccurate inventory will undermine even strong planning, sourcing, logistics, and SRM.
Guide 7 covers warehouse design and layout, the 85% utilization rule, cube efficiency, slotting optimization, receiving, returns, cross-docking, order fulfillment labor, engineered labor standards, WMS implementation, automation choices, and the warehouse KPIs needed to manage distribution as an operating system.

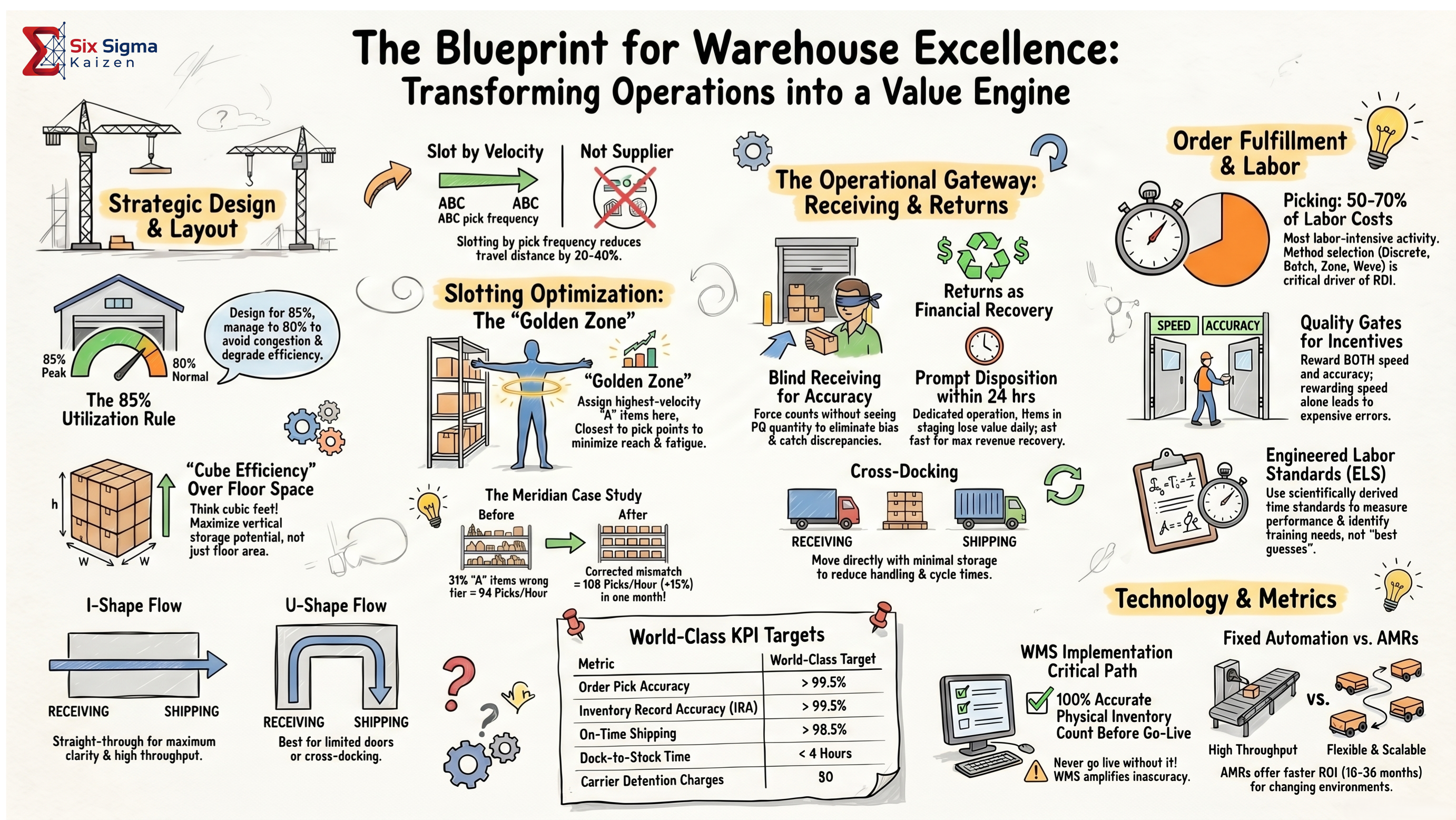

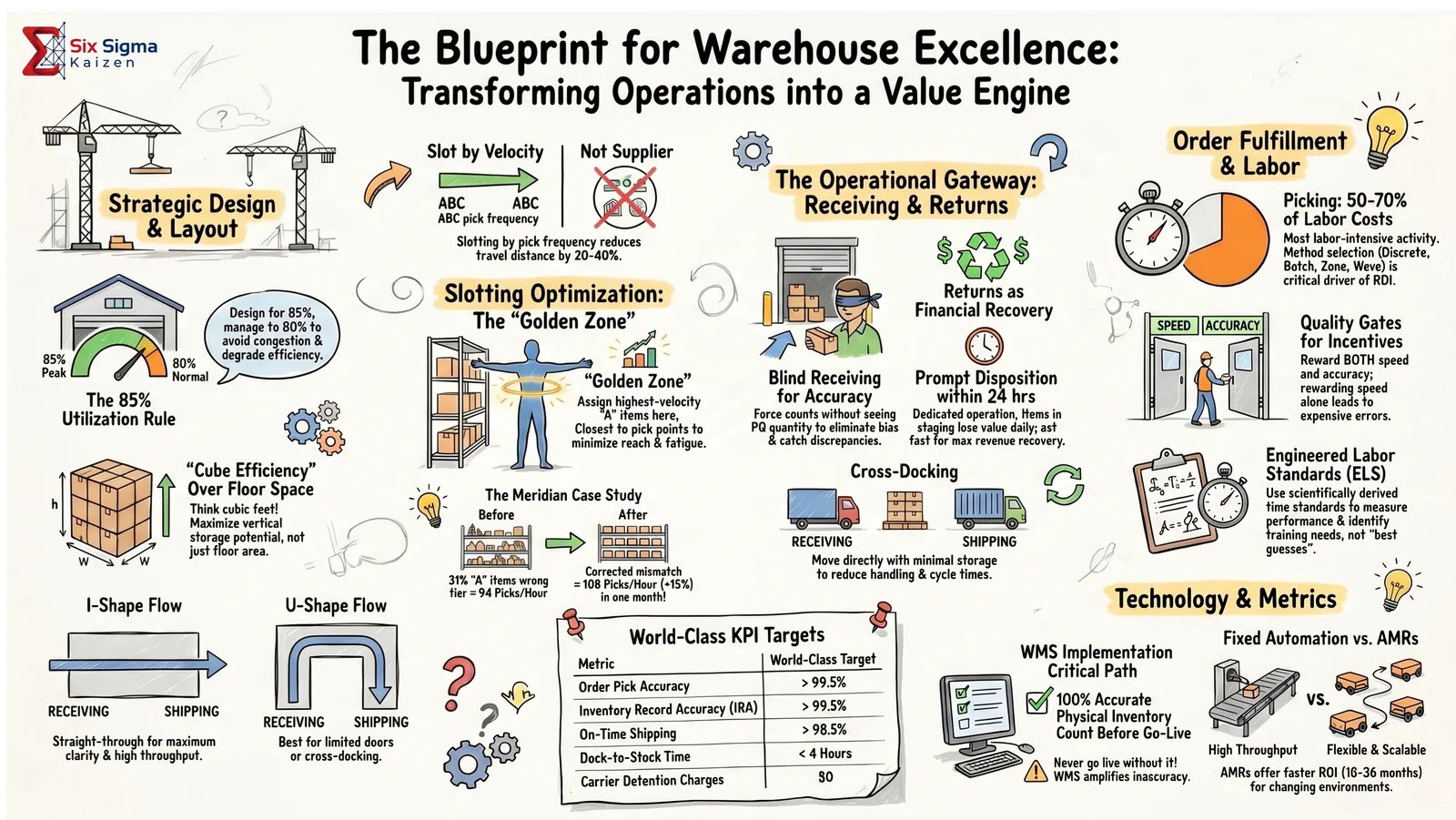

Visual Summary
The warehouse excellence blueprint summarizes the operating model: strategic design, velocity-based slotting, receiving and returns discipline, cross-docking, fulfillment labor, WMS readiness, automation choices, and world-class performance targets.
Jump to Guide Sections
Introduction: The Warehouse as a Value Engine
A warehouse does more than hold material. It receives supply, verifies quantities, protects inventory records, stores product safely, makes product findable, picks orders, packs shipments, stages outbound loads, processes returns, and provides the physical control point between supply chain promises and customer experience.
Warehouse excellence comes from flow, accuracy, labor discipline, space discipline, and decision visibility. Technology helps only when the physical process is stable enough for technology to amplify good work. A WMS implemented over bad location data, weak cycle counting, poor slotting, or unclear receiving standards will make problems faster and more visible, not automatically solve them.
Strategic Design and Layout
Warehouse layout should be designed around material flow, not around whatever space is open today. Poor layout creates unnecessary travel, congestion, excess handling, mis-picks, staging confusion, safety exposure, and carrier detention. Good layout makes the expected flow easy and the wrong flow visible.
| Design Concept | Purpose | Practical Guidance |
|---|---|---|
| 85% Utilization Rule | Avoids congestion and degraded productivity. | Design for about 85% peak utilization and manage normal operating utilization near 80% where possible. |
| Cube Efficiency | Uses vertical storage potential, not only floor area. | Measure cubic utilization, racking height, clear height, stackability, and safe handling constraints. |
| I-Shape Flow | Creates straight-through movement from receiving to shipping. | Best when doors and site geometry support clean linear flow and high throughput. |
| U-Shape Flow | Uses nearby receiving and shipping docks with shared staging and flexible labor. | Useful for limited doors, cross-docking, and operations needing shared dock resources. |
| Separate Fast and Slow Movers | Protects pick productivity and congestion control. | Keep high-velocity items near pick faces and shipping; move slow movers out of the golden zone. |
| Staging Discipline | Prevents dock confusion and shipment errors. | Use clearly marked inbound, inspection, putaway, outbound, hold, returns, and cross-dock zones. |
Slotting Optimization: The Golden Zone
Slotting is the deliberate placement of inventory based on pick velocity, size, weight, handling requirements, replenishment frequency, storage constraints, and ergonomic risk. The most common error is slotting by supplier, part number habit, or empty space instead of by how work actually flows.
| Slotting Factor | Why It Matters | Good Practice |
|---|---|---|
| Velocity | High-pick items drive the most travel and labor. | Assign A items closest to pick points, pack stations, or shipping lanes. |
| Golden Zone | Ergonomic reach zone minimizes bending, stretching, and fatigue. | Place highest-velocity and most frequent picks between roughly knee and shoulder height. |
| Size and Cube | Bulky items consume space and affect aisle flow. | Use correct location type and avoid placing slow bulky material in prime pick space. |
| Weight | Heavy picks affect safety and pick method. | Store heavy items at safe lift heights and use equipment or team lift rules where needed. |
| Affinity | Items frequently ordered together can reduce travel. | Group related SKUs only when it improves pick paths without creating congestion. |
| Replenishment Demand | Small forward locations create frequent restocking. | Balance pick-face productivity against replenishment labor and stockout risk. |
The blueprint highlights the impact: slotting by pick frequency can reduce travel distance by 20-40%. In the Meridian example, correcting misplaced A items increased pick productivity from 94 picks per hour to 108 picks per hour in one month.
The Operational Gateway: Receiving and Returns
Receiving is the gateway for inventory accuracy. Every quantity error, labeling mistake, unrecorded damage, incorrect purchase order receipt, and location mistake becomes a downstream fulfillment problem. Returns can either recover value quickly or become a hidden pile of delayed disposition, inventory confusion, and financial leakage.
| Process | Control Point | Why It Matters |
|---|---|---|
| Appointment and Dock Scheduling | Control inbound flow by carrier, supplier, PO, and load type. | Reduces dock congestion, waiting, detention, and rushed receiving. |
| Blind Receiving | Receiver counts without seeing the expected quantity. | Reduces confirmation bias and catches supplier or documentation discrepancies. |
| Damage Inspection | Inspect packaging, pallet condition, seals, labels, and concealed damage risk. | Creates timely claims evidence and prevents damaged goods entering available inventory. |
| Label and Location Accuracy | Verify SKU, lot, serial, expiration, PO, and destination location. | Protects WMS accuracy and prevents downstream search time. |
| Dock-to-Stock Time | Measure time from physical receipt to available inventory. | Long delays create false shortages and expediting. |
| Returns Disposition | Sort, inspect, restock, repair, scrap, return to vendor, or credit quickly. | Prompt disposition within 24 hours maximizes financial recovery and inventory clarity. |
Cross-Docking and Flow-Through Operations
Cross-docking moves product from receiving to shipping with minimal or no storage. It can reduce handling, storage cost, and cycle time when inbound timing, outbound demand, labeling, documentation, and dock discipline are strong enough to support it.
| Cross-Dock Use Case | Best Fit | Risk to Control |
|---|---|---|
| Pre-Allocated Customer Orders | Inbound product already assigned to outbound customer demand. | Incorrect labels or late inbound arrival disrupt outbound loading. |
| High-Velocity Replenishment | Fast-moving items with predictable outbound demand. | Insufficient staging discipline can create mis-shipments. |
| Retail or Branch Distribution | Break-bulk and flow-through to stores, dealers, or service locations. | Sortation accuracy and outbound route timing. |
| Returns Recovery | Returned goods moving quickly to inspection, refurbishment, vendor return, or resale channel. | Poor disposition criteria can mix sellable and non-sellable inventory. |
Order Fulfillment and Labor
Picking is often 50-70% of warehouse labor cost, which makes fulfillment method selection one of the most important design decisions. Better slotting reduces travel, but the pick method determines how work is batched, sequenced, verified, packed, and staged.
| Pick Method | Best Fit | Strength | Watchout |
|---|---|---|---|
| Discrete Picking | Low-volume or high-complexity orders. | Simple to manage and easy to trace by order. | High travel per order when volume grows. |
| Batch Picking | Many orders with common SKUs. | Reduces repeated travel for the same item. | Requires accurate sorting to avoid order mix-ups. |
| Zone Picking | Large warehouses with logical product zones. | Specializes labor and reduces travel across the full building. | Requires strong handoff and balancing between zones. |
| Wave Picking | Coordinated picking by carrier cutoff, route, customer, or shift. | Aligns picking with shipping schedules and dock capacity. | Poor wave design creates downstream pack/stage congestion. |
Labor Standards and Quality Gates
Engineered Labor Standards use measured work content and scientifically derived time standards to evaluate productivity, staffing needs, training gaps, and improvement opportunities. Incentives should include quality gates so speed is not rewarded at the expense of accuracy, damage prevention, or customer service.
Technology and Metrics: WMS, AMRs, and Automation
A Warehouse Management System provides directed receiving, location control, task management, replenishment, picking, cycle counting, shipping, and traceability. But WMS implementation depends on accurate physical inventory, stable item masters, location discipline, barcode standards, and clear process ownership.
| Technology Choice | Best Fit | Implementation Requirement |
|---|---|---|
| WMS | Operations needing location control, directed work, inventory accuracy, and scalable fulfillment. | 100% accurate physical inventory count before go-live; clean locations, item masters, and process rules. |
| Fixed Automation | Stable high-throughput environments with predictable product mix and volume. | Strong business case, stable layout, maintenance capability, and contingency planning. |
| Autonomous Mobile Robots | Changing environments needing flexible pick support, travel reduction, and scalable capacity. | Clear aisle discipline, WMS/WES integration, charging strategy, safety rules, and workflow design. |
| Scanning / Mobile Devices | Basic transaction accuracy for receiving, putaway, picking, replenishment, and cycle counting. | Barcode quality, device coverage, user training, and exception workflows. |
Meridian Warehouse Transformation Case Study
Meridian's warehouse issues were not caused by one defect. The operation had misplaced high-velocity items, too much prime space consumed by slow movers, inconsistent receiving controls, delayed returns disposition, picking productivity gaps, and incomplete technology readiness. The improvement program started with the physical process before layering in stronger systems.
| Problem | Action | Outcome |
|---|---|---|
| 31% of A items in the wrong tier | Re-slotted high-velocity items into the golden zone and moved slow movers out of prime locations. | Pick rate improved from 94 picks/hour to 108 picks/hour in one month. |
| Congestion during peak periods | Reviewed utilization, staging zones, aisle flow, and dock separation. | Reduced interference between receiving, putaway, picking, and shipping. |
| Inventory record errors | Strengthened blind receiving, transaction discipline, and cycle count readiness. | Built foundation for WMS reliability and fewer false shortages. |
| Delayed returns value recovery | Created dedicated returns staging and 24-hour disposition expectations. | Improved financial recovery and reduced ambiguous inventory. |
| Manual labor standards | Introduced engineered labor standards and quality-gated productivity measures. | Improved staffing decisions and identified training needs without rewarding errors. |
Warehouse KPI Targets
Warehouse metrics should balance accuracy, speed, labor, space, safety, and customer service. A warehouse that ships fast but creates errors is not high-performing; a warehouse that is accurate but slow may still fail customers and carriers.
| KPI | Definition | World-Class Target / Signal |
|---|---|---|
| Order Pick Accuracy | Correct items, quantities, lots, serials, and customer requirements picked. | >99.5% |
| Inventory Record Accuracy | System quantity and location match physical inventory. | >99.5% |
| On-Time Shipping | Orders shipped by committed cutoff or customer requirement. | >98.5% |
| Dock-to-Stock Time | Elapsed time from receipt to available inventory. | <4 hours for standard receipts where process design supports it. |
| Carrier Detention Charges | Fees caused by dock delays or load/unload inefficiency. | Track with goal of continuous reduction; recurring charges indicate dock flow failure. |
| Pick Productivity | Picks, lines, units, or cases per labor hour by method and zone. | Trend by work type; use quality-gated productivity. |
| Space Utilization | Used storage capacity compared to designed capacity. | Manage near 80%; avoid sustained operation at peak congestion levels. |
| Returns Disposition Time | Time from returned receipt to restock, repair, scrap, vendor return, or credit action. | Prompt disposition within 24 hours for standard returns. |
Best Practices, Common Errors, and Tips
Warehouse Excellence Principles
- Design for flow, safety, and visibility before adding technology.
- Manage cube, not only floor space.
- Keep high-velocity items in the golden zone and near the point of use.
- Do not let supplier, part-number habit, or open space dictate slotting.
- Use blind receiving where count accuracy matters.
- Separate returns, inspection, holds, and available inventory with clear status rules.
- Use cross-docking only where inbound timing and outbound demand are reliable.
- Choose picking methods based on order profile, not preference.
- Use engineered labor standards with quality gates, not speed-only incentives.
- Validate physical inventory and location data before WMS go-live.
Common Failures
| Failure | Consequence | Countermeasure |
|---|---|---|
| Running above practical utilization for too long | Congestion, travel, waiting, safety exposure, and degraded productivity. | Track capacity by zone and redesign before peak becomes normal. |
| Poor slotting discipline | Excess pick travel and fatigue. | Review velocity regularly and re-slot high-impact SKUs. |
| Receiving errors allowed into available inventory | False availability, stockouts, mis-picks, and customer failures. | Use receiving standards, blind count, inspection, and immediate transaction accuracy. |
| Returns left in ambiguous status | Lost recovery value and unreliable inventory. | Set disposition lanes and 24-hour decision expectations. |
| WMS implementation over inaccurate data | Technology amplifies existing process errors. | Clean item, location, and inventory data before go-live. |
